Plotting data¶

The plot module is the visual layer of the IGEM client. Where describe summarises, modify cleans, analyze infers and report enriches, plot consumes those typed outputs and turns them into matplotlib figures: Manhattan and QQ plots for association scans, two-panel dotplots for top hits, before/after comparisons of phenotype filters, heatmaps of pairwise interactions, and a Miami plot for replication studies.

Two surfaces share the same defaults:

Bridges (from_results, from_describe, from_modify, from_interaction) — accept the typed IGEM objects directly (RegressionResults, Phenotypes, Genotypes) and dispatch to the right primitive.
Primitives (manhattan, qq_plot, dotplot, distribution, heatmap, miami_plot, …) — pure matplotlib functions that operate on pd.DataFrame / pd.Series / arrays. Useful when you already have a frame in the right shape, or for finer styling control.

Both are reachable from the igem.plot.X facade and from the igem.modules.plot.X free-function form.

Tip

Everything on this page is local and read-only — no server calls, no file writes unless you pass output_path=.... Functions return a matplotlib.figure.Figure that the caller owns; nothing is mutated, nothing is displayed implicitly.

Note

How figures appear depends on where you run them:

Jupyter / IPython with %matplotlib inline: returning a Figure as the last expression renders inline automatically.
Plain Python script: nothing is shown unless you call plt.show() or save with output_path=.... There is no implicit plt.show() — this matches the matplotlib / seaborn / statsmodels convention and avoids blocking on headless HPC nodes.
CLI / SLURM: the Agg backend is the default in headless environments — pass output_path=... to save the figure as an image (or PDF for from_describe).

Note

No CLI commands for this module. Each call returns a Figure — there is no useful single-line terminal artefact, so a CLI form would have nothing meaningful to print. Use Python or a notebook; pass output_path=... when you want a file.

By the end of this page you will know how to:

Visualise an analyze result with from_results — Manhattan, QQ, top-hits dotplot, and the FDR / Bonferroni Manhattan variants.
Generate multi-page distributions for QC with from_describe.
Compare before / after a modify operation with from_modify (works for both Phenotypes and Genotypes).
Visualise GxG / GxE interactions with from_interaction — pairwise heatmap or top-pairs dotplot.
Discover the right plot for a result with suggest_plots(obj) / result.suggested_plots().
Use the primitives directly when you already have a DataFrame in the right shape (escape hatch for custom styling).
Save any figure to disk with output_path=....

All examples below use the IGEM facade — same pattern as Loading data:

from igem import IGEM

with IGEM() as igem:
    fig = igem.plot.from_results(results, kind="manhattan")

The same call is also available as a free function when an IGEM instance is not needed:

from igem.modules.plot import from_results
fig = from_results(results, kind="manhattan")

The two forms are interchangeable; the rest of this page uses the facade form.

Tip

Every figure on this page is reproducible from the showcase notebook docs/caderno/notebooks/plot_module_examples.ipynb. Open it in Jupyter to step through every primitive and bridge with synthetic data already wired up.

1. `from_results` — visualise association results¶

The bridge accepts a RegressionResults directly (the standard return type of igem.analyze.association_study, igem.analyze.ewas, and igem.analyze.gwas) and picks the most appropriate primitive based on the result size and on whether the frame has been annotated.

results = igem.analyze.association_study(phen, outcomes=["BMI"], ...)

with IGEM() as igem:
    igem.plot.from_results(results, kind="auto")

kind="auto" (default) picks manhattan when the result has at least 50 rows, otherwise a sorted top-hits dotplot — the small result is more informative as a ranked list than as a scatter.

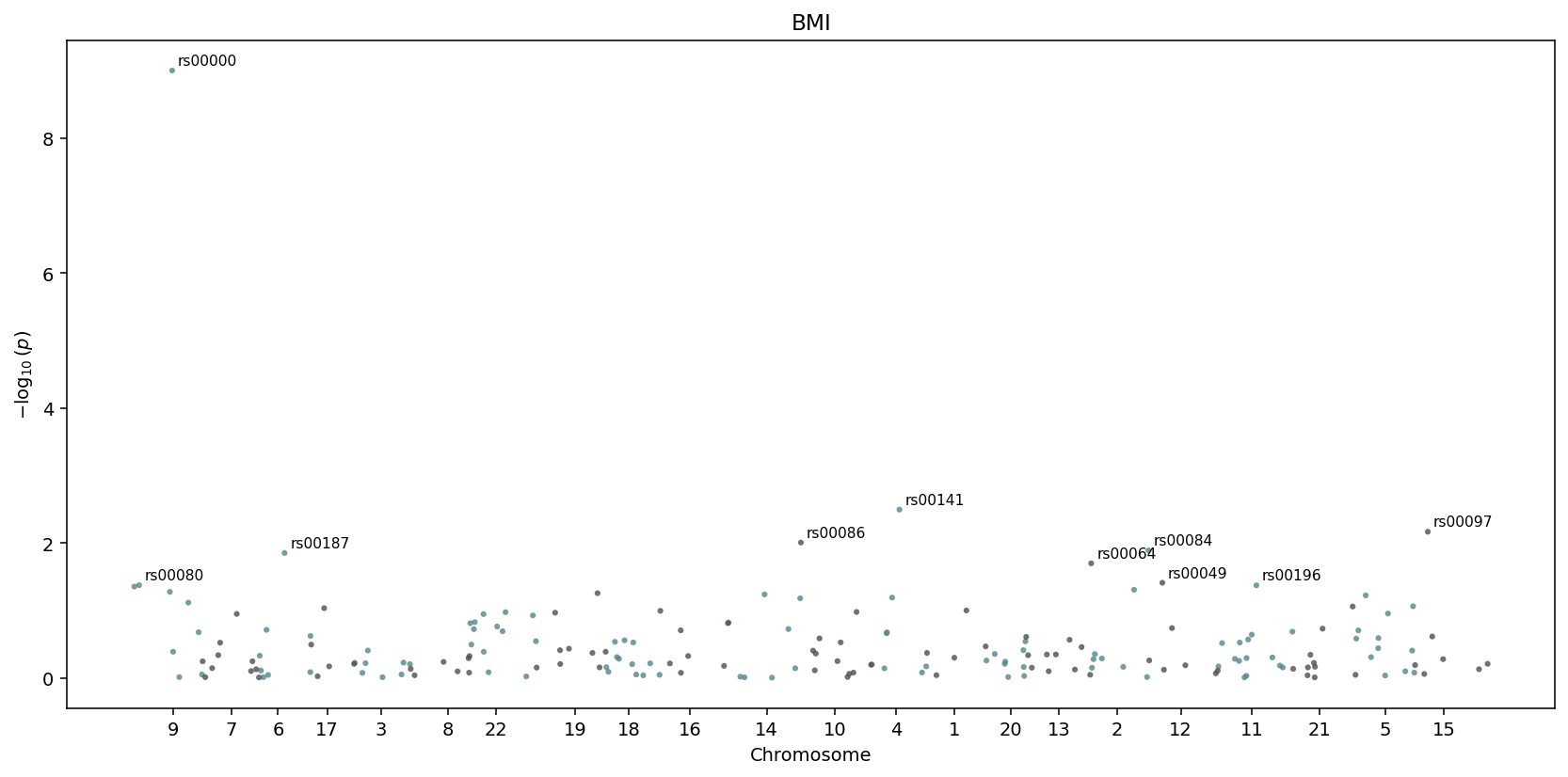

Manhattan¶

When the result has been passed through RegressionResults.annotate(igem) (picking up chromosome / start_position from gene_annotations), the bridge auto-detects the genomic columns and lays the x-axis out per chromosome with alternating colours:

Without annotate, the x-axis falls back to a row index. The top num_labeled hits (default 10) get text labels next to them.

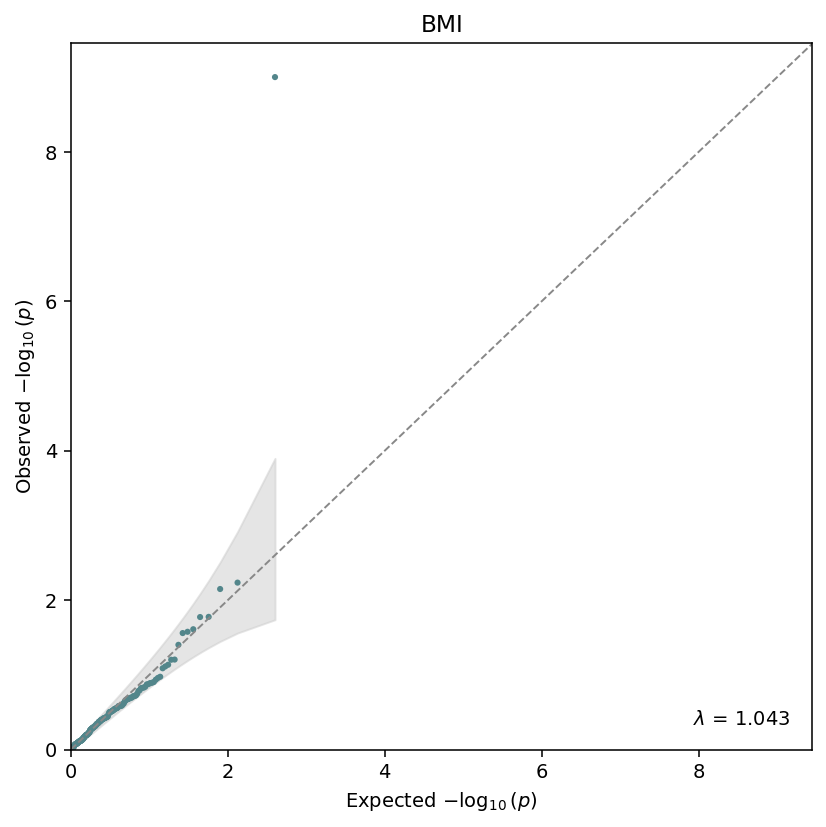

QQ plot with genomic inflation¶

igem.plot.from_results(results, kind="qq")

The QQ primitive also exposes genomic_inflation(pvalues) as a standalone helper:

from igem.modules.plot.primitives.qq import genomic_inflation
lam = genomic_inflation(results.df["beta_pvalue"])

Top-hits dotplot¶

For small results, or as an explicit top-n view:

igem.plot.from_results(results, kind="top", n_top=12)

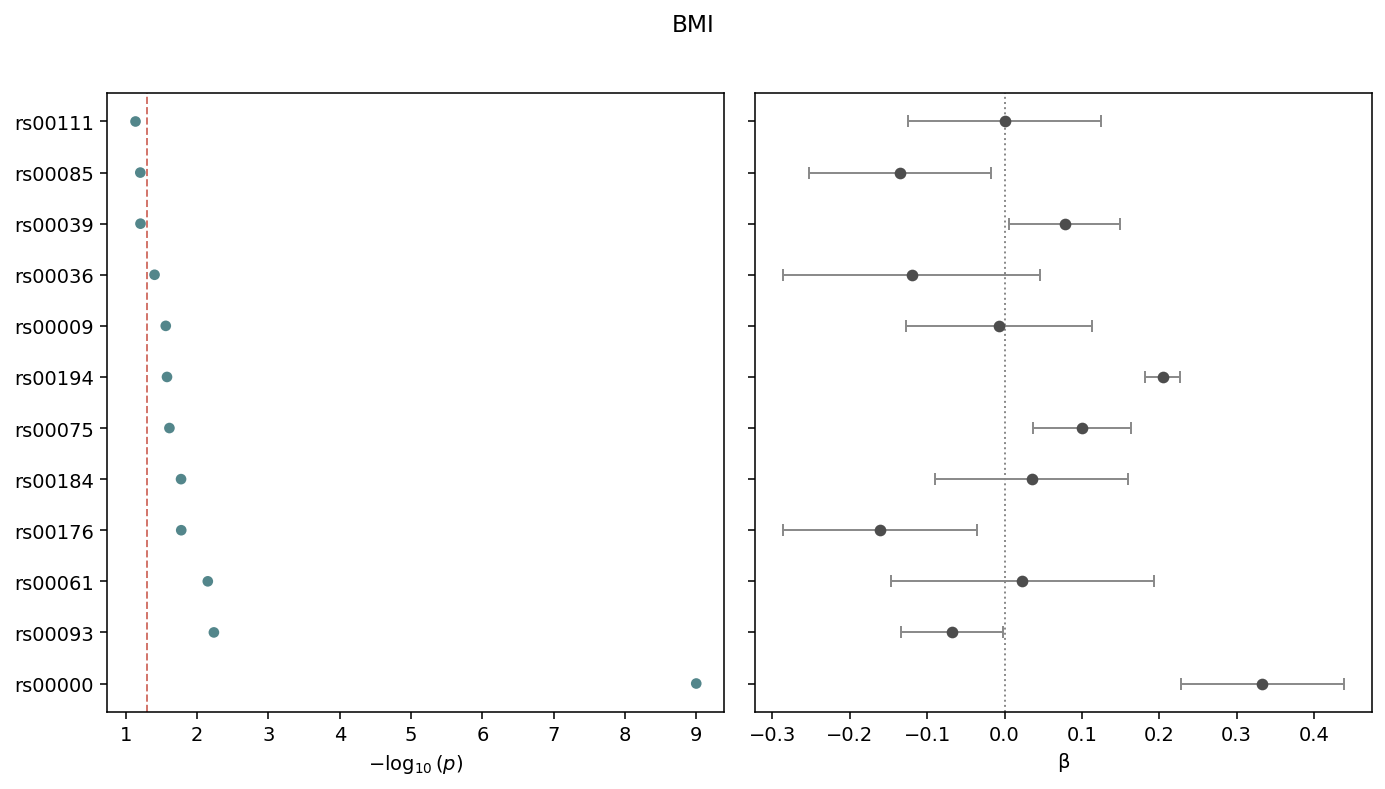

Top-hits dotplot — left p-value panel, right beta with CI — *Two-panel dotplot: \(-\log_{10}(p)\) on the left, \(\beta\) with 95% confidence intervals on the right. Sorted by p-value, smallest at the top. The dashed line marks the cutoff (default 0.05).*¶

FDR / Bonferroni Manhattan variants¶

Both variants reuse the standard manhattan body and only add a threshold line at the appropriate level. Bonferroni uses alpha / n_tests against the raw p-values:

igem.plot.from_results(results, kind="manhattan_bonferroni", cutoff=0.05)

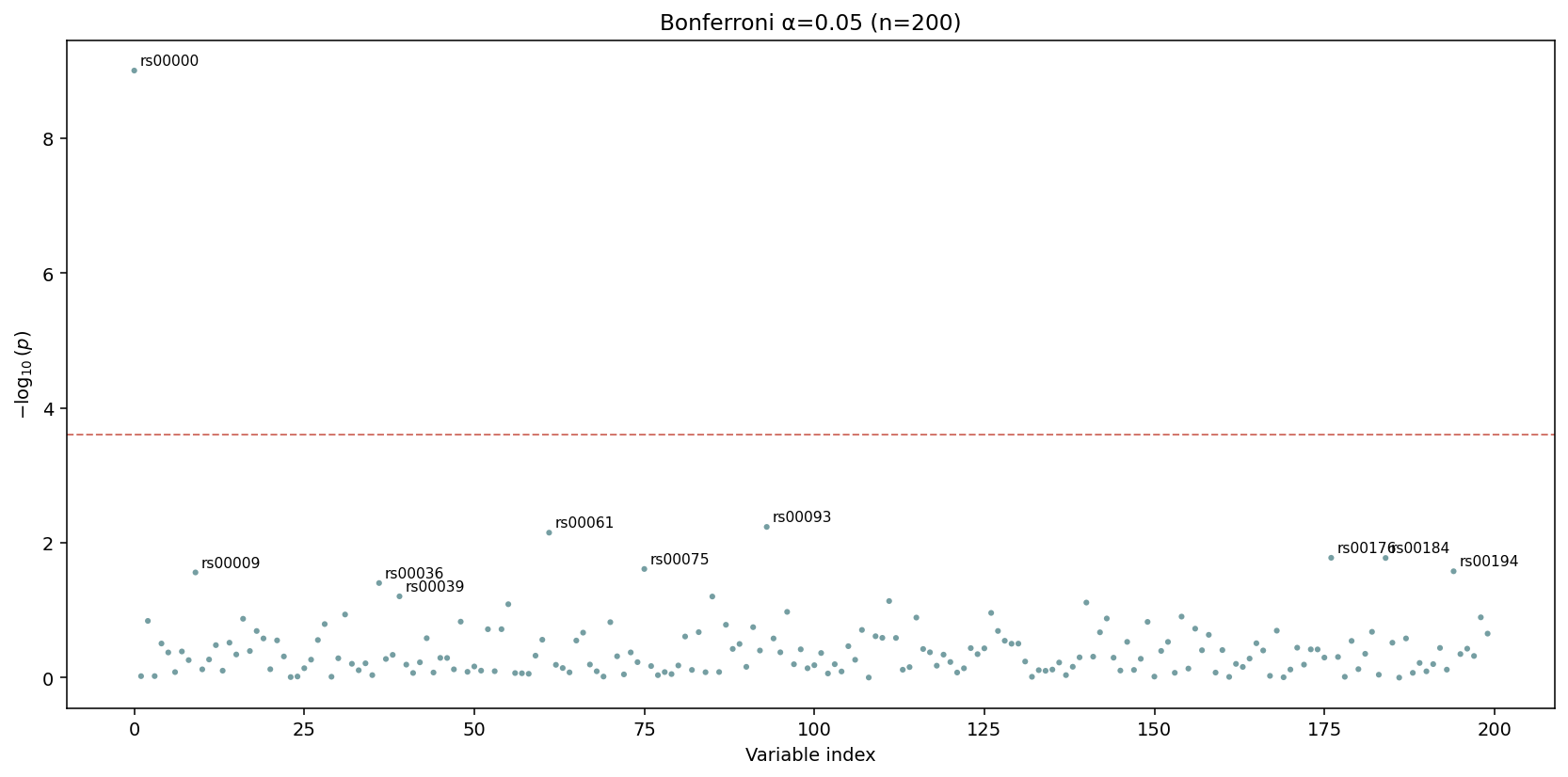

Manhattan with Bonferroni threshold line — *The dashed red line is drawn at \(\alpha / n\) — passing tests show up above it. The default title encodes both \(\alpha\) and \(n\).*¶

FDR plots the corrected p_corrected column directly with a line at q_threshold. Apply the correction first:

results_fdr = results.with_correction("fdr_bh")
igem.plot.from_results(results_fdr, kind="manhattan_fdr", cutoff=0.05)

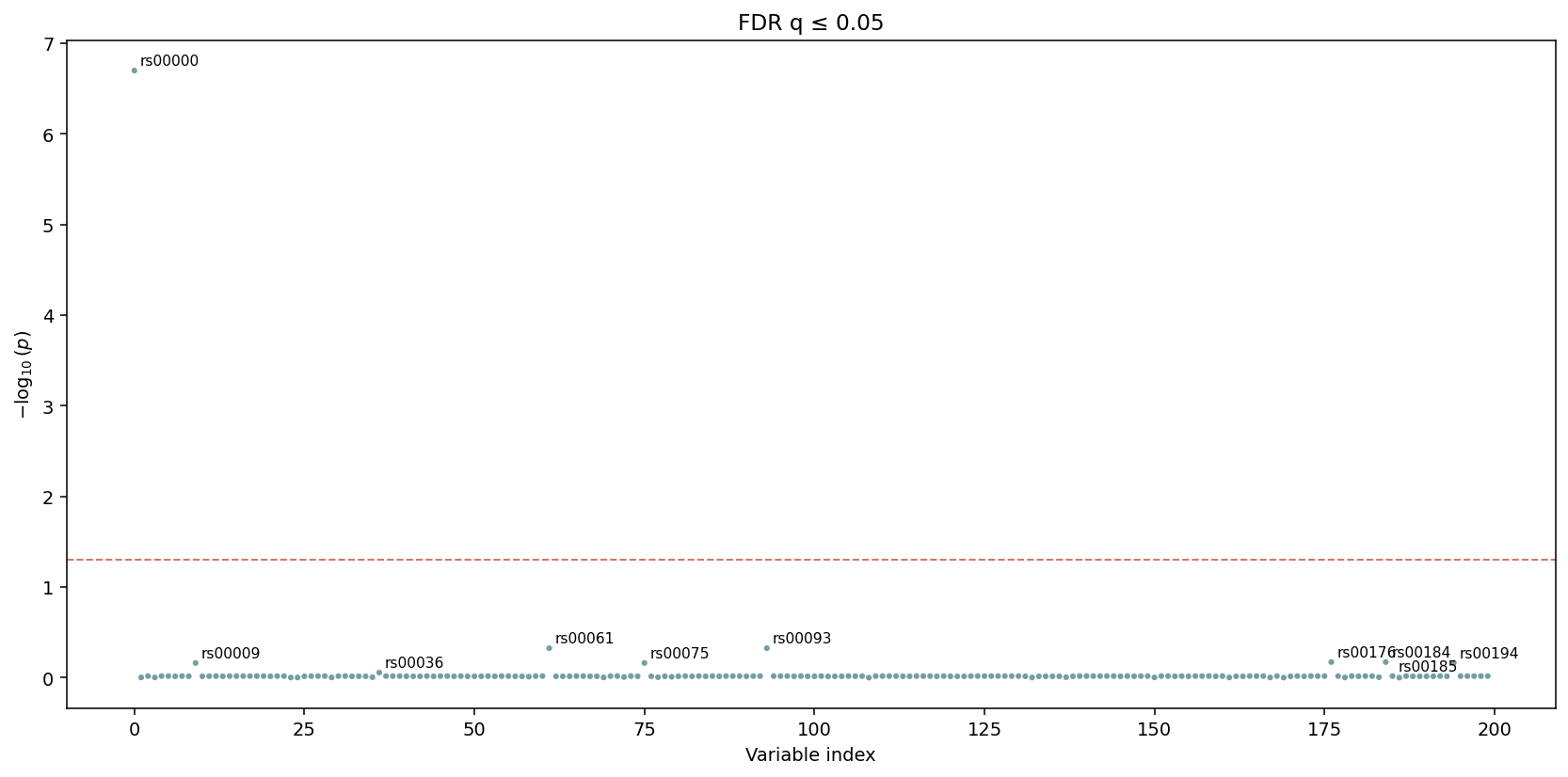

Manhattan of FDR-corrected p-values — *The y-axis here is \(-\log_{10}\) of the **corrected** q-value. The threshold line sits at `q_threshold` directly — no further adjustment.*¶

2. `from_describe` — distributions for QC¶

The bridge classifies each column through describe.summarize (binary / categorical / continuous) and renders the matching primitive per column. Panels are laid out in a grid; once a page is full a new Figure is started, so the function returns list[Figure] — one per page.

figs = igem.plot.from_describe(phen)
print(f"{len(figs)} page(s) generated")

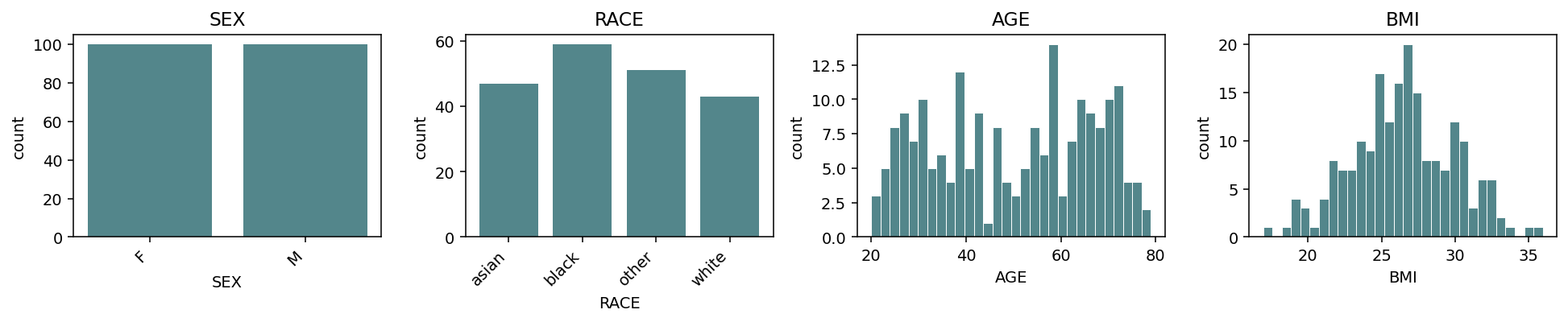

Distribution grid: BMI / AGE histograms, SEX / RACE bars — Default `grid=(3, 4)` accommodates 12 panels per page. Continuous columns get histograms; binary / categorical columns get bar charts. Columns are sorted by `kind` (binary → categorical → continuous) so the layout is consistent across phenotype frames.¶

Switch the continuous representation with continuous_kind ("hist", "box", "violin", "qq"):

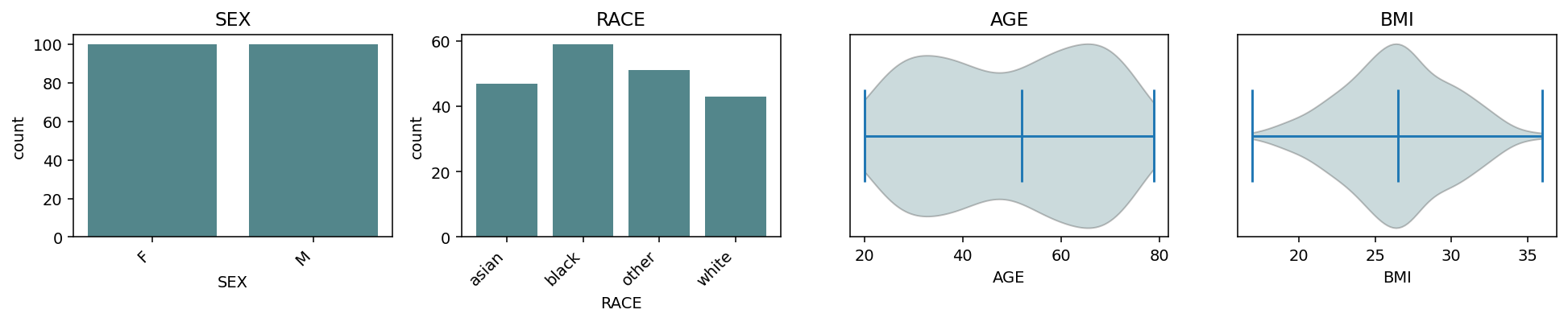

Distribution grid with violin plots for continuous columns — *`continuous_kind="violin"` — same grid, smoothed density per continuous column.*¶

For multi-page output, pass a .pdf path:

figs = igem.plot.from_describe(phen, output_path="qc.pdf")
# 'qc.pdf' now contains one page per Figure

Only .pdf is accepted as output_path — distributions are inherently multi-page and PdfPages is the only natural single-file container. Per-figure image saves stay the caller’s responsibility:

for i, fig in enumerate(figs):
    fig.savefig(f"qc_page_{i}.png", bbox_inches="tight")

3. `from_modify` — before vs after¶

from_modify compares one variable / metric before and after a modify operation. Dispatch is by input type:

Both inputs Phenotypes — var= (column name) is required; kind is auto-detected from the combined values.
Both inputs Genotypes — var= is ignored; metric= selects the per-variant column ("maf" or "call_rate"). The bridge calls igem.describe.variant_stats on each input, so be mindful with biobank-scale data.

Phenotypes — continuous overlay¶

phen_clean = igem.modify.transform(phen, "BMI", method="log")
phen_clean = igem.modify.drop_outliers(phen_clean, ["BMI"])

with IGEM() as igem:
    igem.plot.from_modify(phen, phen_clean, var="BMI")

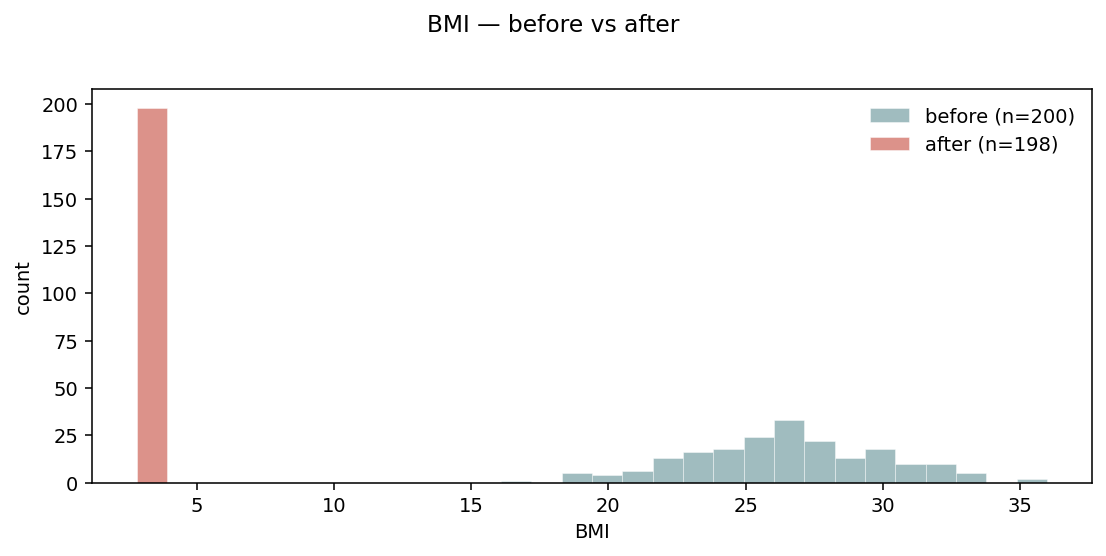

Before and after distributions of BMI on the same axes — *Default `layout="overlay"` — two semi-transparent histograms on the same axes. Sample counts go in the legend so the magnitude of the filter is visible.*¶

Phenotypes — side-by-side¶

When the distributions overlap heavily and overlay becomes hard to read:

igem.plot.from_modify(phen, phen_clean, var="BMI", layout="side_by_side")

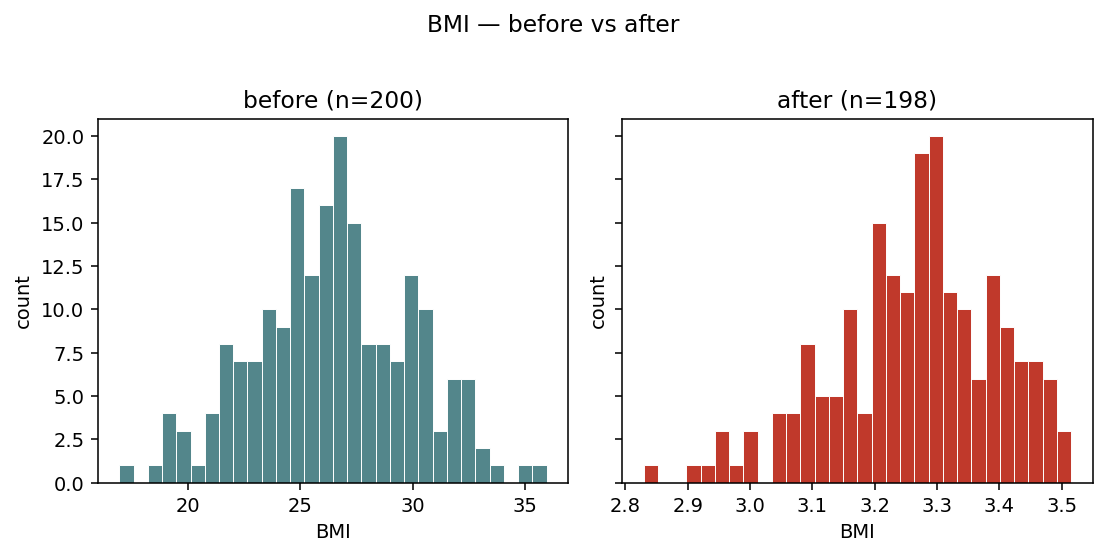

Before and after distributions of BMI on adjacent axes — *`layout="side_by_side"` — two adjacent panels with a shared y-axis. Easier to compare distribution shapes when the change is subtle.*¶

Phenotypes — categorical¶

For categorical (or binary) variables, overlay is replaced by side-by-side bars per level:

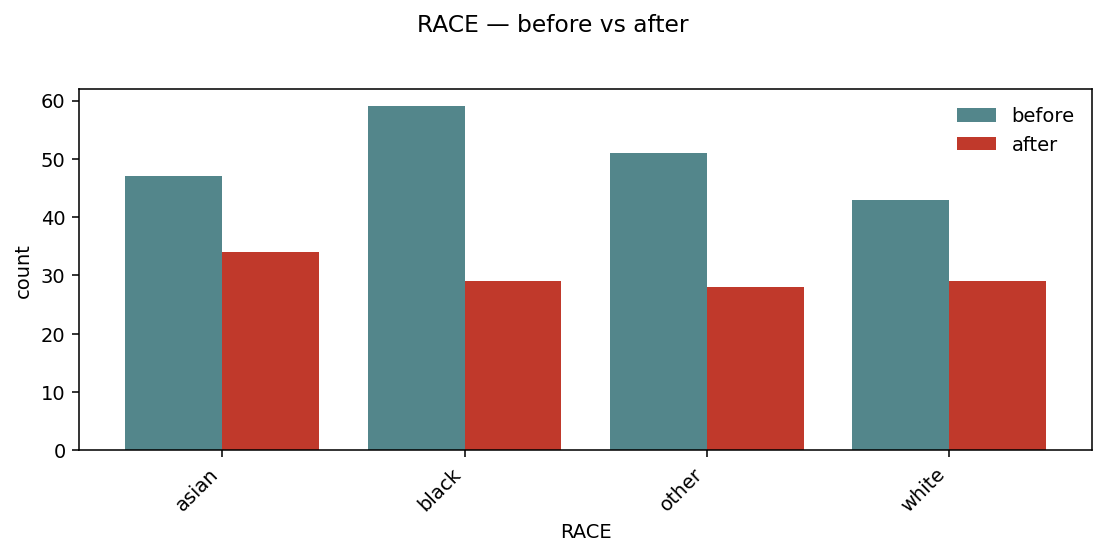

Before and after counts for the RACE column — side-by-side bars — *Per-level bars, before and after, sharing the same x. Useful to spot which strata get dropped by a filter.*¶

Genotypes — MAF / call rate¶

For Genotypes inputs, the bridge plots a per-variant metric. By default it compares minor allele frequency:

geno_clean = igem.modify.filter_maf(geno, threshold=0.05)
igem.plot.from_modify(geno, geno_clean, metric="maf", layout="side_by_side")

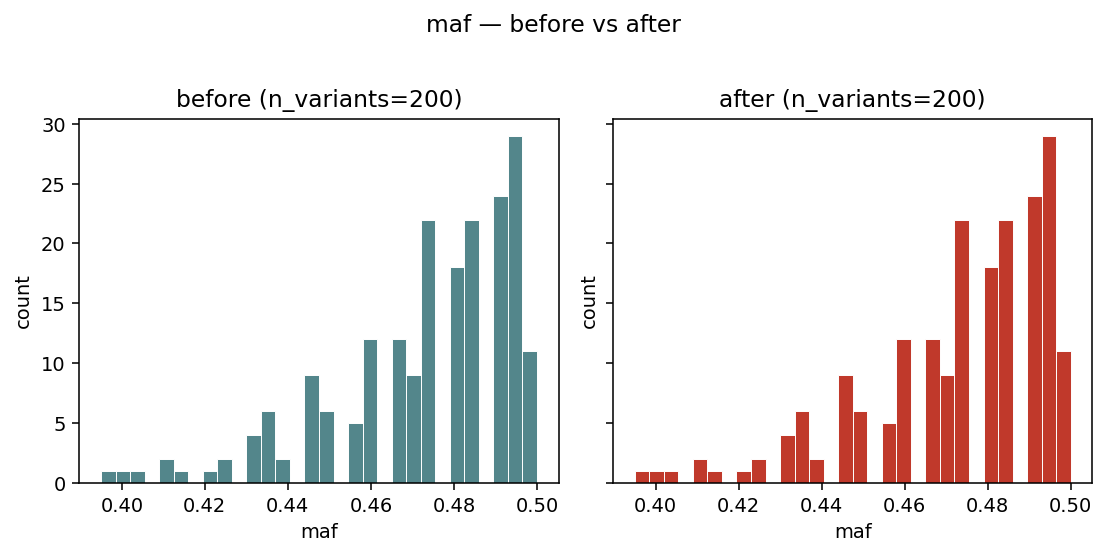

MAF distribution before and after a filter — *Side-by-side histograms of `variant_stats(geno)["maf"]` — visual sanity check that a MAF filter actually removed the low-frequency tail.*¶

4. `from_interaction` — GxG / GxE pairs¶

The bridge expects the long-format output of igem.analyze.interaction_study (one row per (term1, term2) pair). It validates the schema and rejects regular regression results with a clear message — those should go through from_results instead.

kind="auto" picks heatmap when the universe of unique terms is small enough to show as a matrix (≤ 30 terms); otherwise it falls back to a top_pairs dotplot.

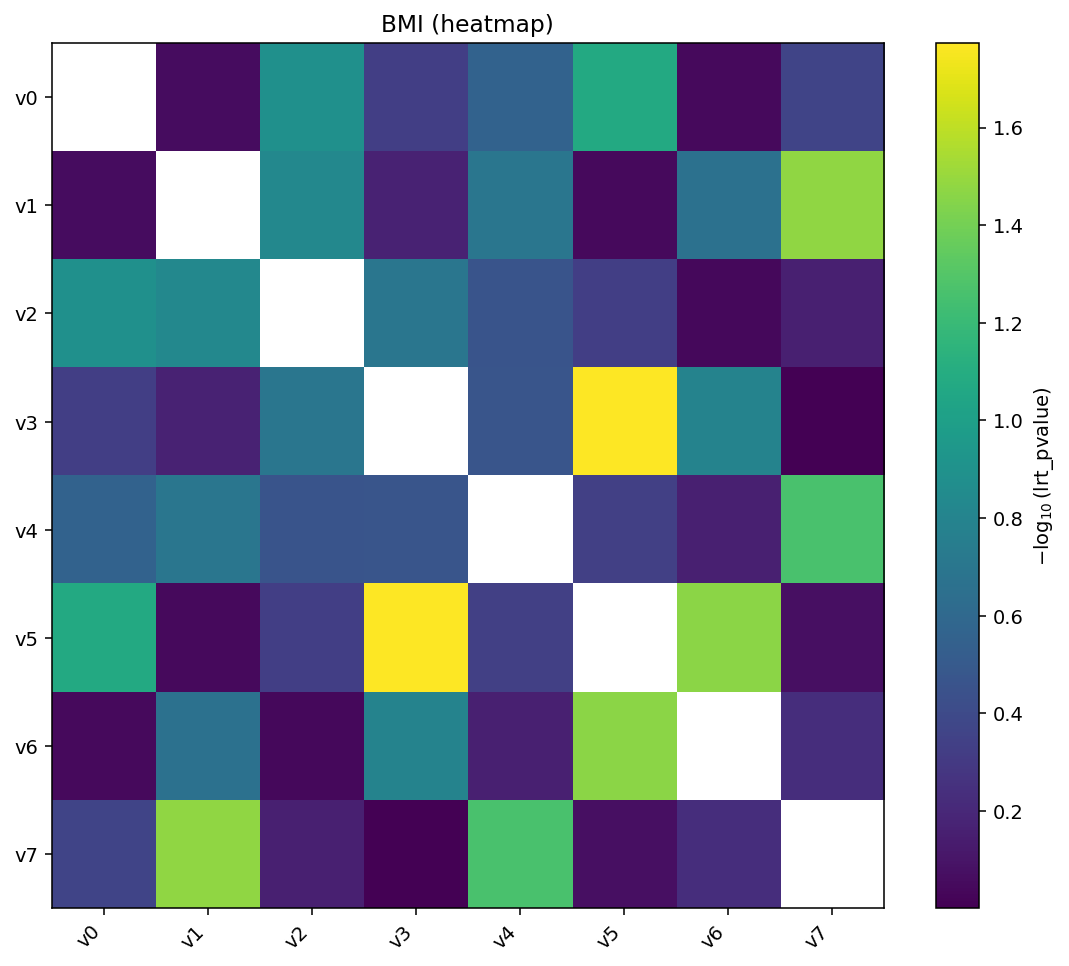

Heatmap¶

interaction = igem.analyze.interaction_study(phen, outcomes=["BMI"], ...)
igem.plot.from_interaction(interaction, kind="heatmap")

Add hierarchical clustering and per-cell annotations for deeper inspection:

igem.plot.from_interaction(interaction, kind="heatmap",
                           cluster=True, annotate=True)

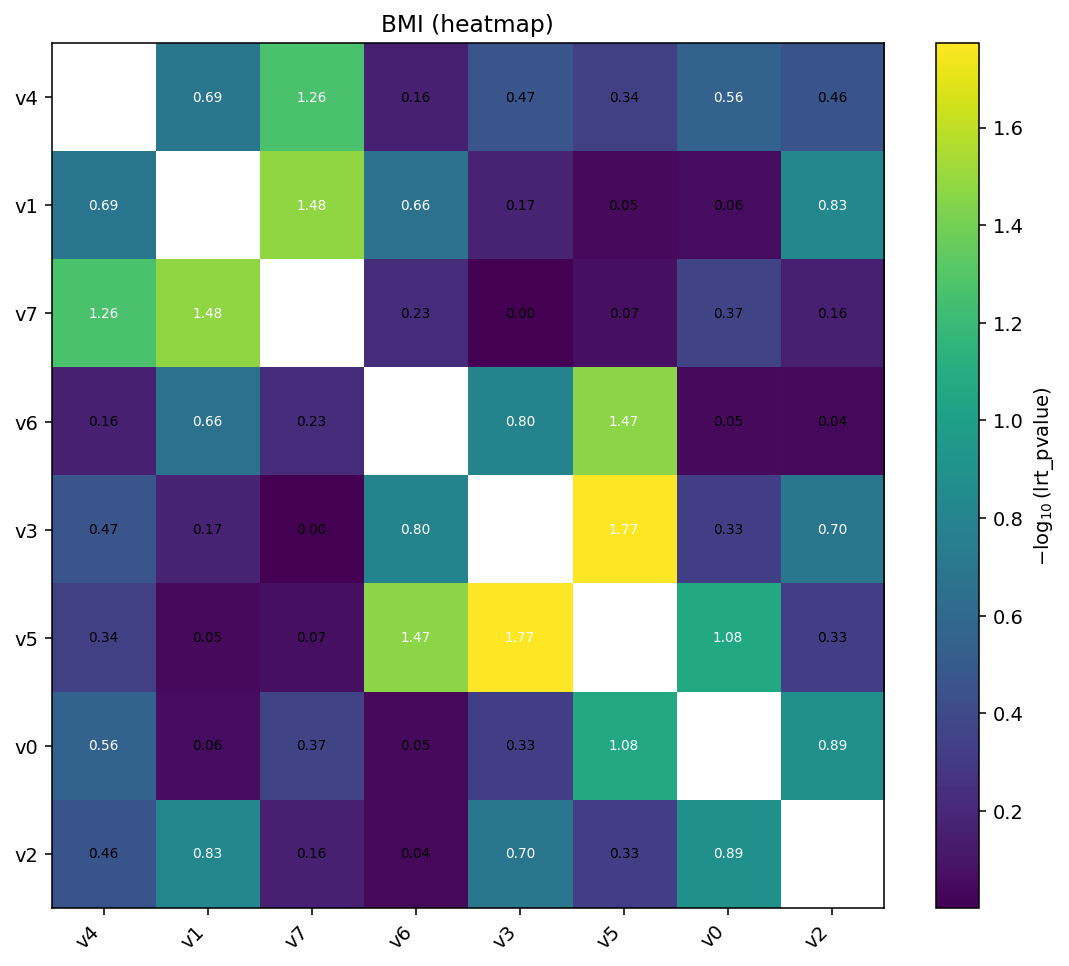

Heatmap with hierarchical clustering and cell annotations — *`cluster=True` reorders rows and columns by single-linkage on the absolute value matrix. `annotate=True` writes the (transformed) value in each cell.*¶

Top-pairs dotplot¶

When the universe of terms is too large for a matrix:

igem.plot.from_interaction(interaction, kind="top_pairs", n_top=10)

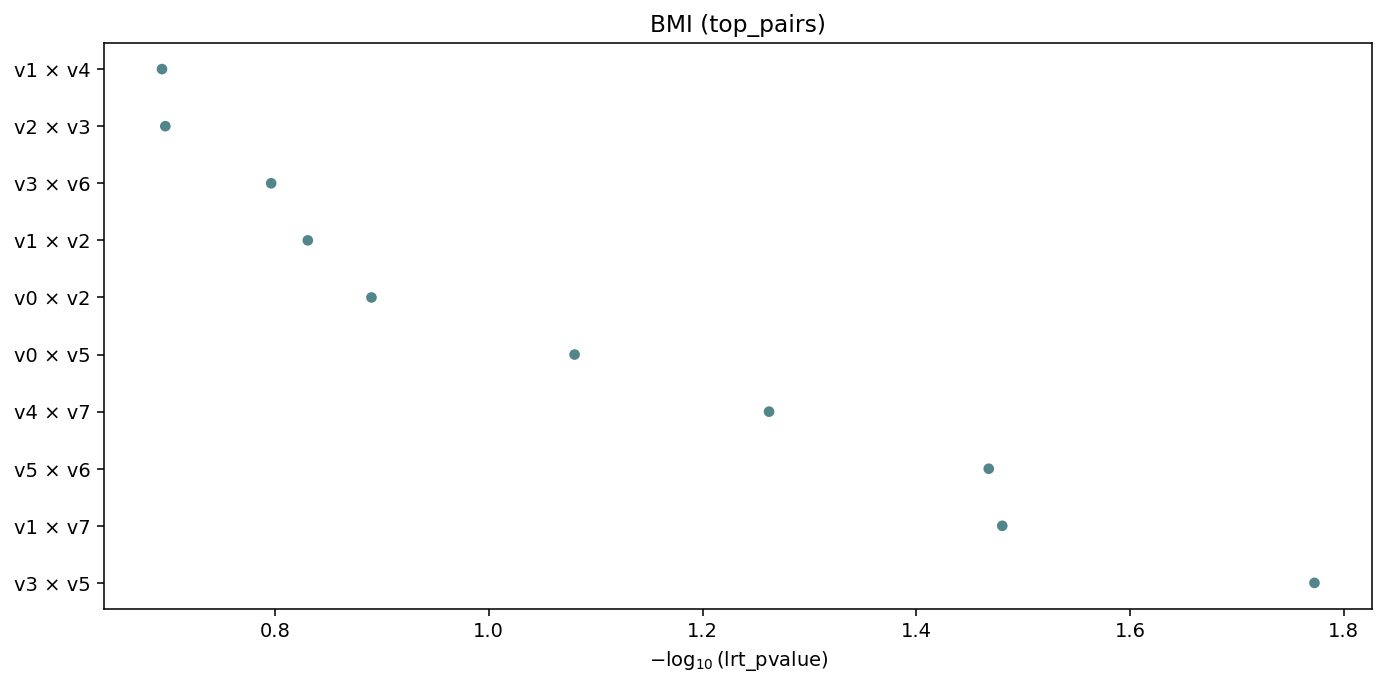

Top-pairs dotplot — pairs labelled term1 × term2 — *Top-`n` interactions ranked by `value` (default `lrt_pvalue`), labelled `term1 × term2`. Auto-fallback when there are too many unique terms for a heatmap.*¶

5. Suggest engine — discovering the right plot¶

A static rule engine returns the plot kinds that make sense for any IGEM result type, without you having to read these docs. The RegressionResults family exposes it as a method; the free function igem.plot.suggest_plots(obj) works for Phenotypes / Genotypes too:

results.suggested_plots()
# ['manhattan', 'qq', 'top']

results.with_correction("fdr_bh").suggested_plots()
# ['manhattan', 'manhattan_fdr', 'qq', 'top']    # adds FDR variant

interaction.suggested_plots()
# ['heatmap', 'top_pairs']                        # interaction schema

igem.plot.suggest_plots(phen)
# ['distributions']

igem.plot.suggest_plots(geno)
# ['maf_distribution', 'call_rate_distribution']

The returned strings are the kind= values accepted by the matching from_* bridge — pass them straight back when you want to actually render:

for kind in results.suggested_plots():
    igem.plot.from_results(results, kind=kind)

There is no ML and no auto-detection of “the right” plot — the rules are intentionally simple: schema-based for RegressionResults, type-based for Phenotypes / Genotypes. Returns [] for unsupported types so the result is a falsy guard.

6. Primitives — the escape hatch¶

When you already have a pd.DataFrame / pd.Series / array in the right shape — for instance after custom post-processing of a RegressionResults, or to plot summary statistics from describe without going through the bridges — call the primitives directly. The full set:

Primitive	Inputs	Purpose
`manhattan` / `manhattan_fdr` / `manhattan_bonferroni`	DataFrame with `pvalue_col`, `label_col`, optional `chrom_col` / `pos_col`	Genome-wide \(-\log_{10}(p)\) scatter
`qq_plot`	array of p-values	Observed vs expected \(-\log_{10}(p)\) with \(\lambda\)
`dotplot`	DataFrame with `pvalue_col`, `beta_col`, optional `ci_*_col`	Two-panel sorted dotplot of top hits
`distribution`	`pd.Series`	Single-column hist / box / violin / qq / bar
`heatmap`	long-format `(row, col, value)` frame	Pairwise matrix with optional cluster / annotate / cutoff
`miami_plot`	two DataFrames	Two stacked Manhattans, bottom mirrored

`distribution` — four kinds in one figure¶

distribution works on any single column. It auto-detects the kind (binary / categorical / continuous) using the same rule as describe.summarize. For continuous columns, continuous_kind selects the visualisation:

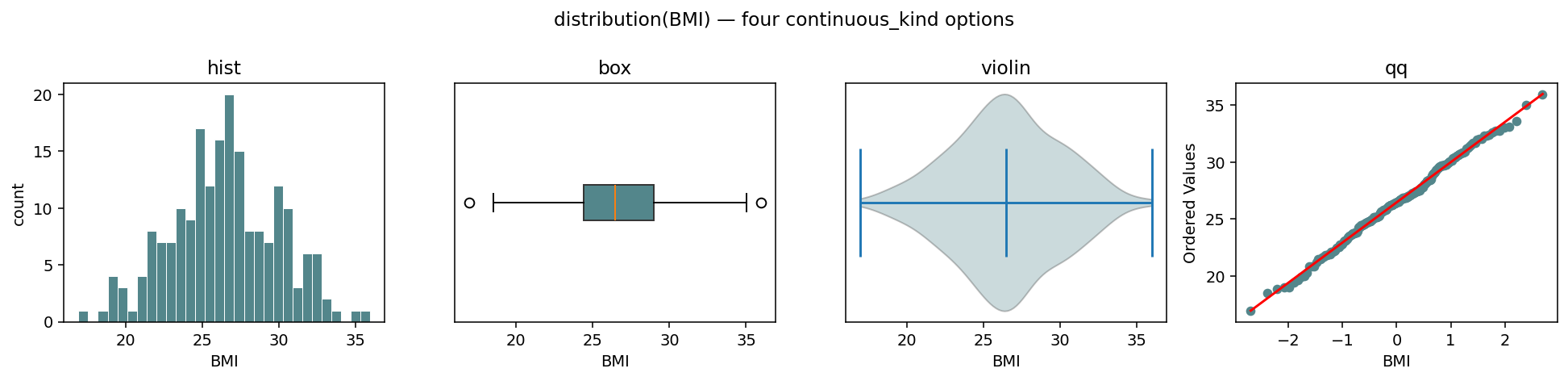

BMI shown as histogram, box plot, violin, and QQ plot — *The same `BMI` series rendered four ways — `continuous_kind` ∈ `{"hist", "box", "violin", "qq"}`. The `ax=` kwarg makes the primitive composable into a parent figure.*¶

fig, axes = plt.subplots(1, 4, figsize=(14, 3.4))
with IGEM() as igem:
    for ax, kind in zip(axes, ["hist", "box", "violin", "qq"]):
        igem.plot.distribution(
            phen.df["BMI"], continuous_kind=kind, ax=ax, title=kind,
        )

For categorical and binary columns, the kind argument is auto-set to "categorical" and the panel becomes a bar chart:

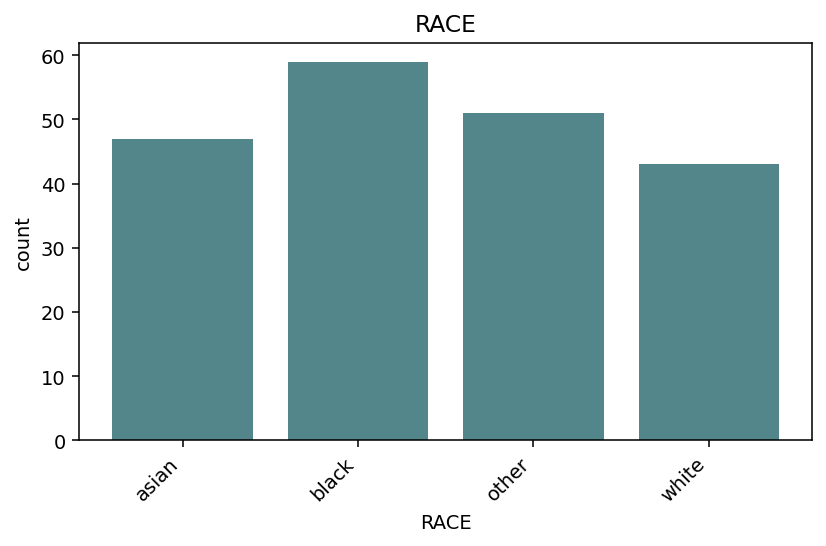

Bar chart of value counts for the RACE column — *`distribution(phen.df["RACE"])` — bar chart of value counts, levels sorted alphabetically.*¶

`heatmap` — `signed_neglog10` for direction + significance¶

The standard transform is "neglog10" (smaller p-value → brighter cell). When you also have a sign column (e.g. β from interaction_study(report_betas=True)), transform="signed_neglog10" combines magnitude with direction in a single colour:

igem.plot.heatmap(
    interaction.df,
    sign_col="term_beta",
    transform="signed_neglog10",
    cmap="RdBu_r",
    title=r"sign($\beta$) $\cdot -\log_{10}$(p)",
)

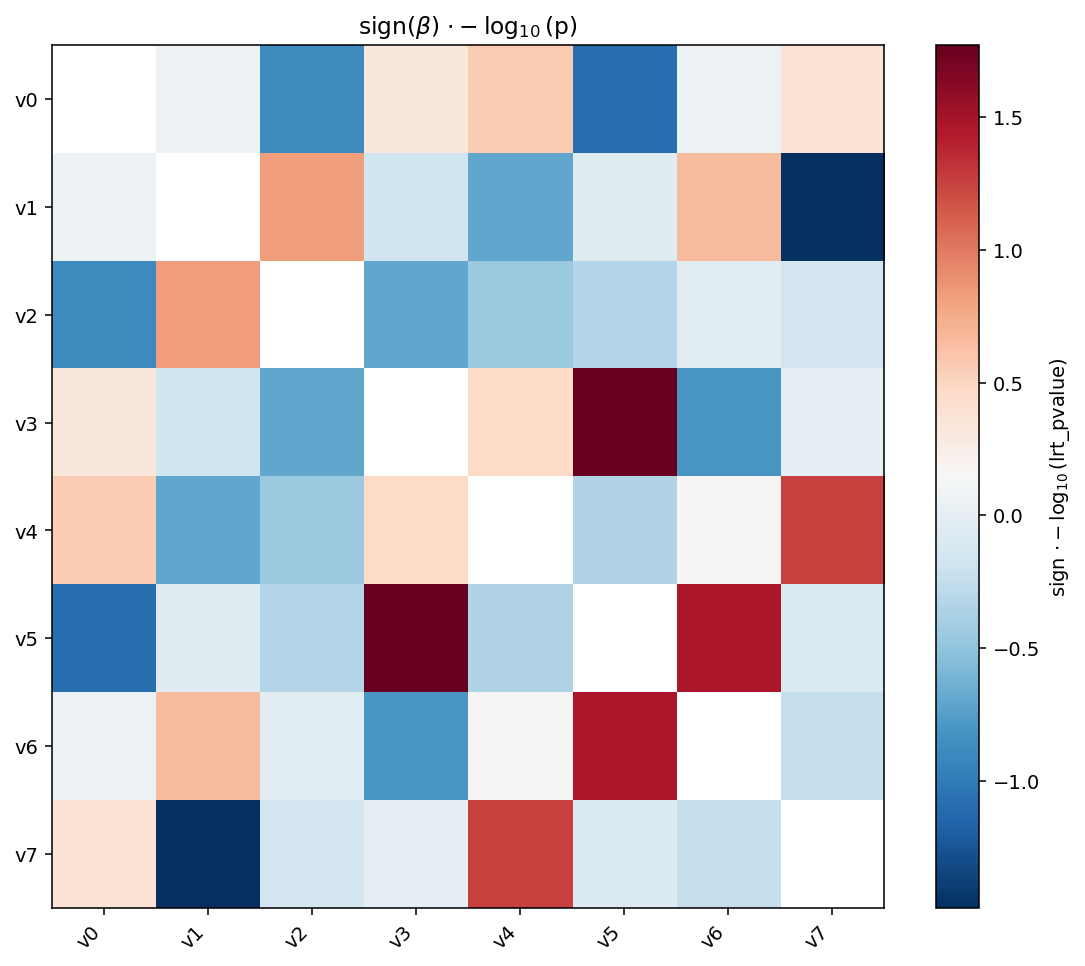

Heatmap with diverging colormap encoding sign(beta) times -log10(p) — `signed_neglog10` is the magnitude \(-\log_{10}(p)\) multiplied by the sign of `sign_col`. With a diverging colormap (`"RdBu_r"`) you can spot direction and significance at a glance — red for positive, blue for negative, intensity for \(-\log_{10}(p)\).¶

`miami_plot` — discovery vs replication¶

Two stacked Manhattans share the x-axis; the bottom one is mirrored so the eye reads it bottom-up. The classic use case is replication — top is the discovery cohort, bottom is the validation cohort — but the same shape works for any pair of comparable studies (e.g. sex-stratified GWAS).

igem.plot.miami_plot(
    discovery.df,
    replication.df,
    top_label="discovery",
    bottom_label="replication",
    cutoffs=[(5e-8, "#C0392B", "--")],
)

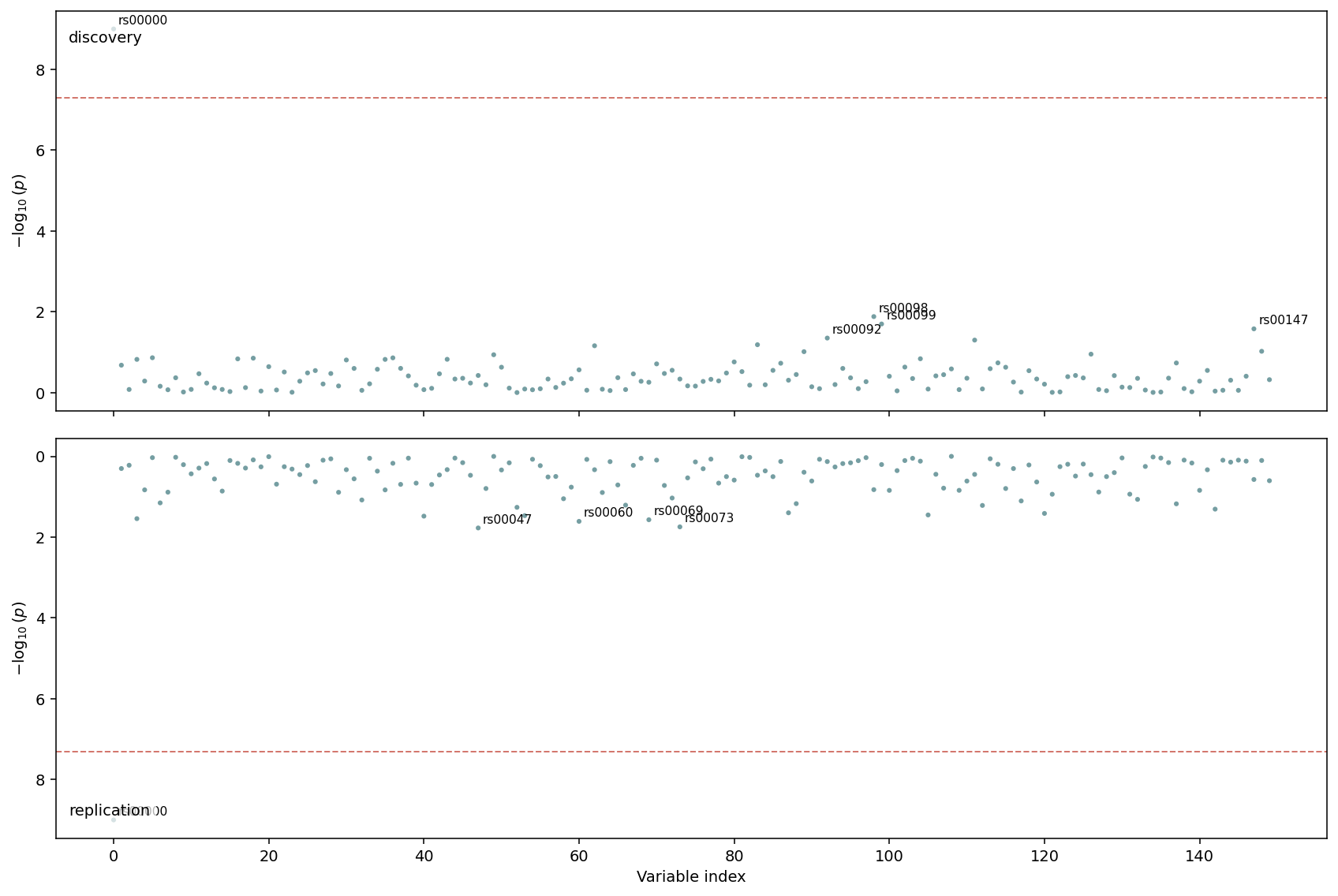

Miami plot — top discovery, bottom replication mirrored — *Top half: discovery cohort. Bottom half: replication cohort with inverted y-axis. The dashed line at \(5\times 10^{-8}\) runs across both panels so genome-wide significant hits are easy to align.*¶

7. Saving figures to disk¶

Every primitive and bridge accepts output_path=.... Extension determines the format (matplotlib auto-detects .png, .pdf, .svg):

igem.plot.from_results(results, kind="manhattan", output_path="manhattan.png")
igem.plot.from_interaction(interaction, output_path="heatmap.svg")
igem.plot.from_describe(phen, output_path="qc.pdf")     # multi-page

When output_path is given the file is written and the Figure is still returned, so you can keep customising it after the save:

fig = igem.plot.from_results(results, kind="manhattan", output_path="m.png")
fig.axes[0].set_title("My custom title")
fig.savefig("m_titled.png", bbox_inches="tight")

For multi-page output, only from_describe accepts a .pdf directly (it owns its own PdfPages context). For composing heterogeneous figures (e.g. an EWAS Manhattan and a from_describe PDF) into a single document, use matplotlib.backends.backend_pdf.PdfPages manually:

from matplotlib.backends.backend_pdf import PdfPages

with PdfPages("report.pdf") as pdf:
    pdf.savefig(igem.plot.from_results(results, kind="manhattan"))
    pdf.savefig(igem.plot.from_results(results, kind="qq"))
    for fig in igem.plot.from_describe(phen):
        pdf.savefig(fig)

A first-class dashboard_pdf composer that wraps this loop, with provenance and report/-driven label enrichment, is on the roadmap (deferred — see docs/caderno/2026-05-08__007_*.md).
